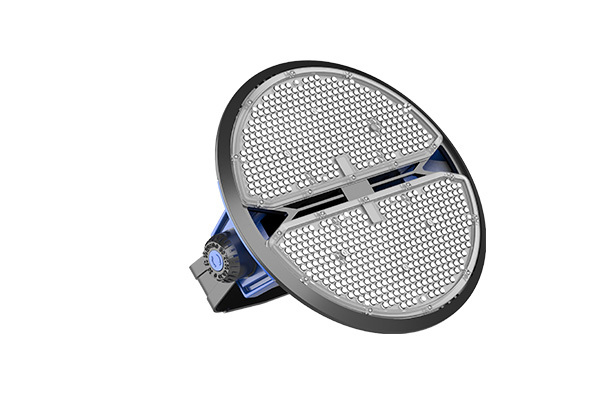

HB-UFO-H

PRODUCT FEATURES:

• High performance and reputable brand led chips and driver

• Clear polycarbonate lens with no risk of lamp breaking for safe industry applications

• Optimized aluminum alloy housing design for superior thermal management

• No cool down needed before restart

HB-UFO-H400W

Specifications:

Electrical Data
Wattage	400W
Voltage	AC85-265V
LED	770PCS SMD3030
Surface Color	Black
Optical Data
Color temperature	2700~6500K
Lumen	140LM/W
Detection angle	10/25/60/90°
RA	>80
RF	>0.8
Others
Material	Aluminum
Working Temperature	-20℃ - 50℃
Size	Φ493*439*421mm
Warranty	5years

HB-UFO-H500W

Specifications:

Electrical Data
Wattage	500W
Voltage	AC85-265V
LED	770PCS SMD3030
Surface Color	Black
Optical Data
Color temperature	2700~6500K
Lumen	140LM/W
Detection angle	10/25/60/90°
RA	>80
RF	>0.8
Others
Material	Aluminum
Working Temperature	-20℃ - 50℃
Size	Φ493*439*421mm
Warranty	5years

HB-UFO-H800W

Specifications:

Electrical Data
Wattage	800W
Voltage	AC85-265V
LED	1540PCS SMD3030
Surface Color	Black
Optical Data
Color temperature	2700~6500K
Lumen	140LM/W
Detection angle	10/25/60/90°
RA	>80
RF	>0.8
Others
Material	Aluminum
Working Temperature	-20℃ - 50℃
Size	Φ651*586*511mm
Warranty	5years

HB-UFO-H1000W

Specifications:

Electrical Data
Wattage	1000W
Voltage	AC85-265V
LED	1540PCS SMD3030
Surface Color	Black
Optical Data
Color temperature	2700~6500K
Lumen	140LM/W
Detection angle	10/25/60/90°
RA	>80
RF	>0.8
Others
Material	Aluminum
Working Temperature	-20℃ - 50℃
Size	Φ651*586*511mm
Warranty	5years

Packing details:

Warning:

• It should by professional electrician technician to install the product , inspection , maintenance and rack-mounted.

• Before installing fifixtures , make sure the power is turned offff during the installation process.

• Make sure the circuit voltage is in the lamp operation voltage allowable range.

• If the external flflexible cable or cord of the luminaire is damaged, it should only be replaced by the qualifified person.

• Lamp should working under the predetermined working temperature.

Warranty:

5 years warranty for original purchaser of LED product that is identifified on seller's invoice reflflecting its original purchase(the "Product")

• The following circumstances will not be warranted :

• Damage caused by force majeure such as war,riots,sabotage,cyclones,earthquakes,tidal waves,flflooding,fifire,lighting strikes etc.

• Damage caused by user’s improper delivery.defects caused by wrong operation,wrong treatmentand destruction of machinery

• Damage caused by buyer or installer using bad quality cable or other mismatching electronic parts.

• With the quality problem during warranty time , our company will choose to repair / replacement parts ,or replace the product , or other methods to slove them . Beyond the warranty time , will take somematerials costs , labor costs.
